Miter Marker

#MMS505

“New ON/OFF Magnet”

3

Product Description

  • For 1-1/2″ to 18″ pipe and 18″ structural beams.
  • The MITER MARKER has been redesigned using the newest OFF/ON magnet technology.
  • The unique design of the tool allow you to telescope out over existing welds to layout angles or change the angles of pipe fittings to meet your special needs.
  • The marking arm is completely separate from the main body and has its own 360° rotating shaft with a built-in leveling vial.
  • The arms have spring-loaded joints for smooth and precision operation for years of trouble-free service.
  • Structural beam layouts and marking angles or saddles on pipe and tubing are a snap with the MITER MARKER.
  • Structural Adaptor is included.  Structural Adaptor aligns tool base exactly parallel to edge of structural steel beams and channel iron.
  • The MITER MARKER is sold in a sturdy polypropylene lockable case (p/n 8901) for lasting protection.
  • The MITER MARKER is machined from quality aluminum material then anodized for lasting protection.





Miter

* A Spring Buckle Strap #5010 is available to hold base tight on non-magnetic work materials.



 The ON/OFF switch makes setting up easy and keeps the block free from debris.
Miter & Master Markers
MMS505 & MML510

↓↓ Video en Espańol ↓↓

Marcador de Tuberia
MMS505 & MML510

Warning:  Excessive heat can damage the magnets.  Keep magnet block away from sensitive electronic devices.  Keep magnet block in “OFF” position when not in use.
* Download the MMS505 Instruction Guide

4

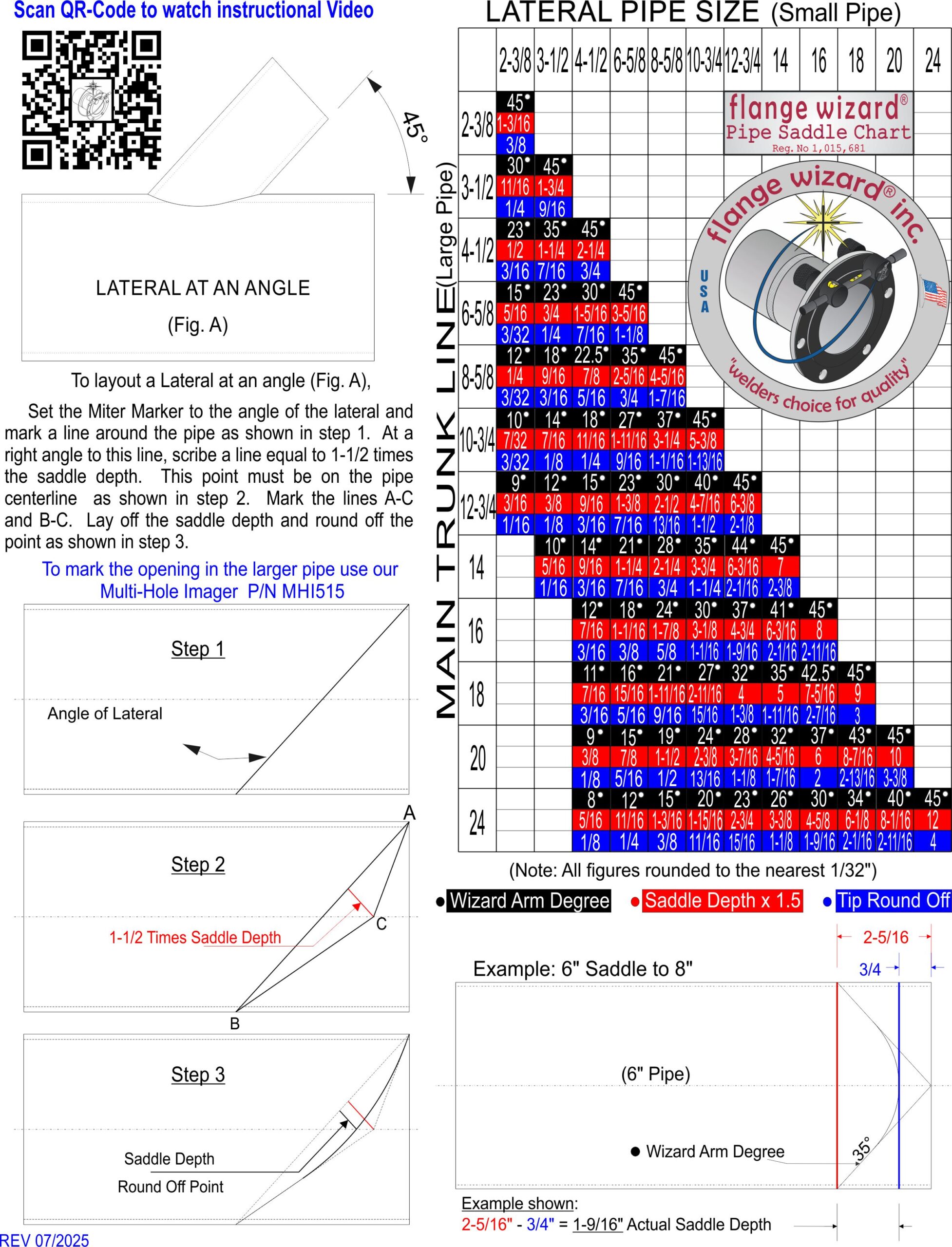

* Download the FWI Pipe Saddle ChartSaddle Chart
Saddle Chart

↓↓ Video en Espańol ↓↓

Grafico de Montaje para Tuberia
